Brand New 2022 Genius Controllers!

Introducing the next generation of intelligent lighting control.

The Lineup

App

A Whole New Genius

What is Genius? It's at the heart of every product in our new line. In short, Genius products try to automatically understand what is hooked up and how they are hooked up, saving time and hastle.

Our New Controllers - an in Depth Look

App

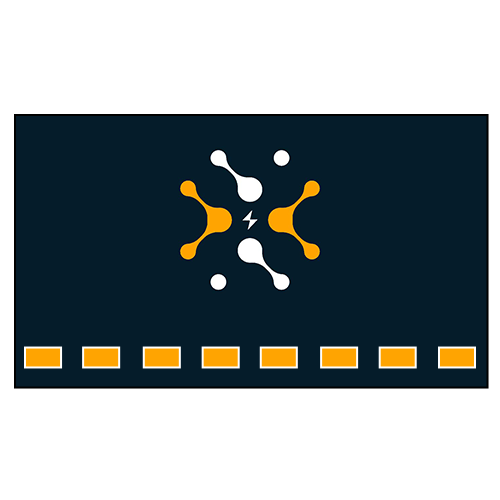

8 & 16 Output Pixel Genius Controller

  • • 1 Ethernet Port
  • • 16 x 3-pin spring loaded terminals (no phoenix connectors, or screw down terminals)
  • • 16 x automatically resettable fuses (no replacing burnt out fuses)
  • • 8 Output, ready to run, Dragon controller sold from MattosDesigns.com
  • • Supported protocols: DDP, E1.31, ArtNet
  • • 2 independent power input banks, with reverse polarity protection. (12V only)
  • • 2 x RJ45 ports for long range receivers + 2 x RJ45 ports for DMX output
  • • Beautiful responsive web user interface
  • • Configuration can be done via your smartphone, tablet or PC over a wifi or wired connection
  • • Per port current monitoring (RTCM: Real time current Monitoring)
  • • Per port pixel counting
  • • Automatic fault detection can find burnt out pixels, before you can
  • • Repair mode highlights where you need to splice to remove failed pixels
  • • SD card slot for log storage, and standalone operation
  • • Remote, over the air updates; with easy ability to roll back to previous firmware versions
  • • Rich JSON API
  • • Built-in test mode animations & WLED animations
  • • Future remote monitoring via a mobile app; free to single-site residential customers
  • • Seamlessly control up to 10,880 pixels using e1.31/artnet, or 21,760 pixels using DDP.
Purchase Now [16 Output]
Purchase Now [8 Output - Ready to Run]
App

Long Range Genius Controller

  • • 1 Local Ethernet Port
  • • 10 x RJ45 ports for long range receivers + 2 x RJ45 ports for DMX output
  • • Supported protocols: DDP, E1.31, ArtNet
  • • 1 x 5V power input (barrel jack or screw down terminal), with reverse polarity protection.
  • • Beautiful responsive web user interface
  • • Configuration can be done via your smartphone, tablet or PC over a wifi or wired connection
  • • SD card slot for log storage, and standalone operation
  • • Remote, over the air updates; with easy ability to roll back to previous firmware versions
  • • Rich JSON API
  • • Built-in test mode animations & WLED animations
  • • Future remote monitoring via a mobile app; free to single-site residential customers
  • • Seamlessly control up to 10,880 pixels using e1.31/artnet, or 21,760 pixels using DDP.
  • • Can be used to drive pixel genius receivers, or AC genius receivers
Purchase Now
App

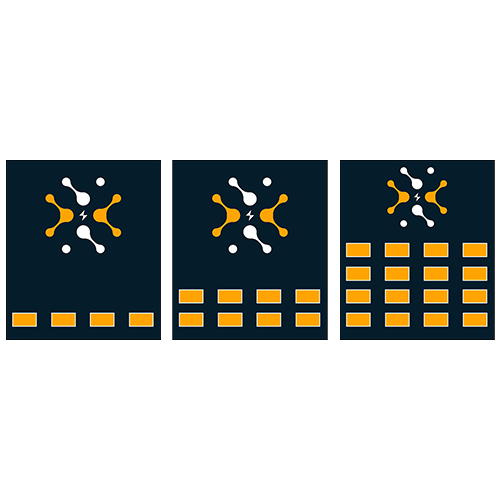

4, 8 & 16 Output

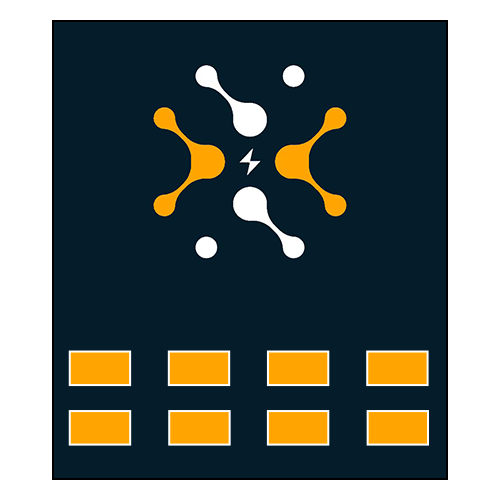

Long Range Pixel Genius Receiver

  • • 2 x RJ45 ports for long range connection; supports daisy-chaining
  • • 1 power input, with reverse polarity protection (12V only)
  • • 4 or 16 x 3-pin spring loaded terminals (no phoenix connectors, or screw down terminals)
  • • 4 or 16 x automatically resettable fuses (no replacing burnt out fuses)
  • • 8 Output, ready to run, Dragon receiver sold from MattosDesigns.com
  • • Seamless integration with existing differential driving controllers (Dumb, FPP, Falcon V3 & V4). No system lock-in, mix and match.
  • • Auto detection of "Dumb" or "FPP" or "Smart V3 Falcon" or "Smart V4 Falcon" or "Genius". No switches to toggle, or software to configure
  • • Built-in test mode animations & WLED animations
  • • Auto positioning determines the receiver's "place in line". Will detect if it's an A-F receiver without the need for dip switches on each receiver
  • • If you need to manually set a receivers position (A-F), there is an on-board rotary dial to optionally override
Purchase Now [4 output]
Purchase Now [8 output - Ready to Run]
Purchase Now [16 output]
App

8 Output, Ready-to-Run AC Genius Controller

  • • 1 Local Ethernet Port
  • • E1.31/DDP/ArtNet/DMX or Pixel input control
  • • 1 x RJ45 Port for DMX input
  • • 2 x RJ45 ports for long range receivers
  • • 1 x 16AWG Grounded Power Input Cord (Male)
  • • 8 x 16AWG Grounded Power Output Cords (Female)
  • • 1 x 15A Fast Blow Glass Fuse
  • • Beautiful responsive web user interface
  • • Configuration can be done via your smartphone, tablet or PC over a wifi or wired connection
  • • SD card slot for log storage, and standalone operation
  • • Remote, over the air updates; with easy ability to roll back to previous firmware versions
  • • Rich JSON API
  • • Built-in test mode animations
  • • Future remote monitoring via a mobile app; free to single-site residential customers
Purchase Now
App

8 Output, Ready-to-Run Long Range AC Genius Receiver

  • • 2 x RJ45 ports for long range connection; supports daisy-chaining
  • • 1 x 16AWG Grounded Power Cord (Male)
  • • 1 x 15A Fast Blow Glass Fuse
  • • 8 x 16AWG Grounded Power Cords (Female)
  • • Seamless integration with existing differential driving controllers (Dumb, FPP, Falcon V3 & V4). No system lock-in, mix and match.
  • • Auto detection of "Dumb" or "FPP" or "Smart V3 Falcon" or "Smart V4 Falcon" or "Genius". No switches to toggle, or software to configure
  • • Built-in test mode animations
  • • Auto positioning determines the receiver's "place in line". Will detect if it's an A-F receiver without the need for dip switches on each receiver
  • • If you need to manually set a receivers position (A-F), there is an on-board rotary dial to optionally override
Purchase Now
